k8s故障场景
1.亲和性规则冲突
1.排查问题
kubectl describe pods
2.查看evtens字段
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 103s default-scheduler 0/3 nodes are available: 1 node(s) had untolerated taint {node-role.kubernetes.io/control-plane: }, 2 node(s) didn't match Pod's node affinity/selector. preemption: 0/3 nodes are available: 3 Preemption is not helpful for scheduling.
警告 调度失败 103秒前 默认调度器 3个节点均不可用：
- 一个节点无法容忍的五点（污点键：node-role.kubernetes.io/control-plane)
- 2个节点不匹配pod的亲和性/选择器
抢占调度：0/3个节点可用，抢占对当前调度无帮助

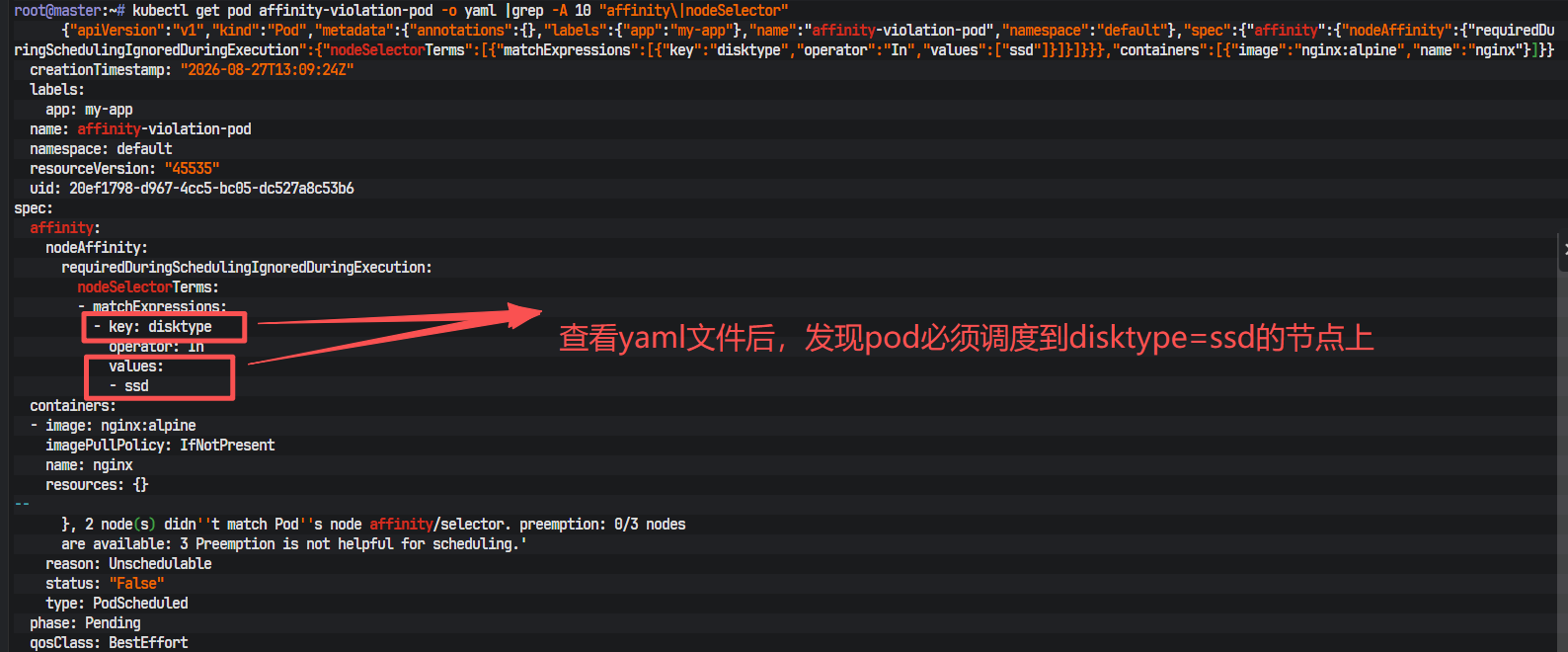

3.查看pod的资源清单
kubectl get pod <pod-name> -o yaml |grep -A 10 "affinity\|nodeSelector"
4.查看node节点是否存在disktype这个节点
kubectl get nodes --show-labels
NAME STATUS ROLES AGE VERSION LABELS
master Ready control-plane 20d v1.32.13 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=master,kubernetes.io/os=linux,node-role.kubernetes.io/control-plane=,node.kubernetes.io/exclude-from-external-load-balancers=
worker1 Ready <none> 20d v1.32.13 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=worker1,kubernetes.io/os=linux
worker2 Ready <none> 20d v1.32.13 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=worker2,kubernetes.io/os=linux
并没有这个disktype这个标签，所有3个节点都无法创建pod
2.DNS解析失败
1.查看节点状态
kubectl get node -o wide
2.查看pod详细信息
kubectl describe pods
3.查看pod日志
kubectl logs dns-failure-pod
报错信息
;; connection timed out; no servers could be reached
显示无法到达任何服务器
根据报错信息得到，是容器内部的dns解析问题，进入容器内部查看解析
root@master:~# kubectl exec -it dns-failure-pod -- /bin/sh
/etc # cat /etc/resolv.conf
nameserver 192.0.2.1
/etc # ping 192.0.2.1
PING 192.0.2.1 (192.0.2.1): 56 data bytes
^C
--- 192.0.2.1 ping statistics ---
5 packets transmitted, 0 packets received, 100% packet loss
ping指向的IP 192.0.2.1 无法ping通
4.查看pod对应的yaml文件
root@master:~# kubectl get pod dns-failure-pod -o yaml
5.根据pod名查看Pod yaml文件对应的位置
root@master:~# grep -r "name: dns-failure-pod" .
./kubernetes-like-a-pro/troubleshoot-kubernetes-like-a-pro/scenarios/dns-resolution-failure/issue.yaml: name: dns-failure-pod
6.修改pod yaml中192.0.2.1的ip地址，将ip改为对应svc的ip
查看对应svc的ip
root@master:~# kubectl get svc -n kube-system |grep dns
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 20d
7.删除pod并新建pod后查看pod日志显示正常
kubectl delete dns-failure-pod
kubectl apply -f 查询到的yaml文件地址
3.资源不足
1.查看pod状态
kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
insufficient-resources-pod 0/1 Pending 0 89s <none> <none> <none> <none>
pod处于pending状态
2.查看详细信息
kubectl describe pods insufficient-resources-pod
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 2m45s default-scheduler 0/3 nodes are available: 1 node(s) had untolerated taint {node-role.kubernetes.io/control-plane: }, 2 Insufficient memory. preemption: 0/3 nodes are available: 1 Preemption is not helpful for scheduling, 2 No preemption victims found for incoming pod.
警告 pod调度失败 2m45s前 默认调度器 3个节点均不可用 1 个节点存在无法容忍的污点（污点键：`node-role.kubernetes.io/control-plane`） 2个节点不匹配Pod的节点亲和性/选择器 抢占调度：0/3个节点可用
3个节点均无法通过抢占来解决调度问题
3.查看pod对应yaml文件请求的资源数量
root@master:~# kubectl get pod insufficient-resources-pod -o yaml | grep -A 5 "resources:"
resources:
requests:
cpu: "2"
memory: 4Gi
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
请求4g内存，而2个worker节点和1个master的内存都只有4g，所有无法创建pod，物理机器的资源不够pod请求，必须修改对应的资源清单
4.删除pod并重建pod
root@master:~# kubectl delete pods insufficient-resources-pod
root@master:~# kubectl apply -f kubernetes-like-a-pro/troubleshoot-kubernetes-like-a-pro/scenarios/insufficient-resources/issue.yaml
4.k8s版本过旧
5.安全上下文问题
root@master:~/kubernetes-like-a-pro/troubleshoot-kubernetes-like-a-pro/scenarios/security-context-issues# ll
total 24
drwxr-xr-x 2 root root 4096 Apr 7 14:27 ./
drwxrwxr-x 37 root root 4096 Apr 7 14:27 ../
-rw-rw-r-- 1 root root 539 Aug 27 12:18 description.md
-rw-rw-r-- 1 root root 306 Apr 7 14:27 fix.yaml
-rw-rw-r-- 1 root root 309 Apr 7 14:27 issue.yaml
-rw-rw-r-- 1 root root 139 Apr 7 14:27 security_context.sh
root@master:~/kubernetes-like-a-pro/troubleshoot-kubernetes-like-a-pro/scenarios/security-context-issues# cat fix.yaml
apiVersion: v1
kind: Pod
metadata:
name: security-context-fixed-pod
spec:
containers:
- name: busybox
image: busybox
command:
- "sh"
- "-c"
- "echo 'Security context fixed' && sleep 1000"
securityContext:
runAsUser: 1000 # Set to a non-root user
runAsGroup: 1000
root@master:~/kubernetes-like-a-pro/troubleshoot-kubernetes-like-a-pro/scenarios/security-context-issues# cat issue.yaml
apiVersion: v1
kind: Pod
metadata:
name: security-context-issue-pod
spec:
containers:
- name: busybox
image: busybox
command:
- "sh"
- "-c"
- "echo 'Simulating security context issue' && sleep 1000"
securityContext:
runAsUser: 0 # Simulating root user
runAsGroup: 0
对比问题前yaml文件和修复后yaml文件
排查出是securityContext字段发生了变化，从0（root）用户切换到1000（普通用户）
实践：
1.查看pod的用户是啥
root@master:~/kubernetes-like-a-pro/troubleshoot-kubernetes-like-a-pro/scenarios/security-context-issues# kubectl exec -it security-context-issue-pod -- bin/sh
/ # id
uid=0(root) gid=0(root) groups=0(root),10(wheel)
2.修改后pod的用户
root@master:~/kubernetes-like-a-pro/troubleshoot-kubernetes-like-a-pro/scenarios/security-context-issues# kubectl exec -it security-context-fixed-pod -- bin/sh
~ $ id
uid=1000 gid=1000 groups=1000
6.CGroup问题
1.查看pod状态
root@master:~# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
cgroup-issue-pod 0/1 ImagePullBackOff 0 2m17s 10.244.2.23 worker2 <none> <none>
这里的报错信息并不对，是我网络的问题造成的镜像拉取失败，正确的报错关键字应该是`OOMKilled`，`Exit Code: 137`，pod状态为CrashLoopBackOff或者Error
2.查看详细信息
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 111s default-scheduler Successfully assigned default/cgroup-issue-pod to worker2
Normal Pulling 17s (x4 over 110s) kubelet Pulling image "polinux/stress"
Warning Failed 16s (x4 over 109s) kubelet Failed to pull image "polinux/stress": failed to pull and unpack image "docker.io/polinux/stress:latest": failed to resolve image: unexpected status from HEAD request to https://docker.m.daocloud.io/v2/polinux/stress/manifests/latest?ns=docker.io: 403 Forbidden
denied: 🚫 👀-> https://github.com/DaoCloud/public-image-mirror/issues/2328 🔗 这镜像不在白名单. this image is not in the allowlist.
Warning Failed 16s (x4 over 109s) kubelet Error: ErrImagePull
Normal BackOff 3s (x6 over 109s) kubelet Back-off pulling image "polinux/stress"
Warning Failed 3s (x6 over 109s) kubelet Error: ImagePullBackOff
核心错误。表示请求被服务器拒绝，场景，镜像不在白名单中
3.看出对应资源清单
root@master:~# cat ./kubernetes-like-a-pro/troubleshoot-kubernetes-like-a-pro/scenarios/cgroup-issues/issue.yaml
apiVersion: v1
kind: Pod
metadata:
name: cgroup-issue-pod
spec:
containers:
- name: stress
image: polinux/stress
command: ["stress", "--vm", "1", "--vm-bytes", "100M"]
resources:
limits:
memory: "50Mi"
可以看到容器启动使用内存为100m，但是limits限制的内存为50m，所以容器一达到50mi就被杀死
7.资源限制失败
1.查看pod信息
root@master:~# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
failed-resource-limits-pod 0/1 ImagePullBackOff 0 16s 10.244.2.31 worker2 <none> <none>
2.查看详细信息
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 55s default-scheduler Successfully assigned default/failed-resource-limits-pod to worker2
Normal BackOff 25s (x2 over 53s) kubelet Back-off pulling image "polinux/stress"
Warning Failed 25s (x2 over 53s) kubelet Error: ImagePullBackOff
Normal Pulling 14s (x3 over 55s) kubelet Pulling image "polinux/stress"
Warning Failed 13s (x3 over 53s) kubelet Failed to pull image "polinux/stress": failed to pull and unpack image "docker.io/polinux/stress:latest": failed to resolve image: unexpected status from HEAD request to https://docker.m.daocloud.io/v2/polinux/stress/manifests/latest?ns=docker.io: 403 Forbidden
denied: 🚫 👀-> https://github.com/DaoCloud/public-image-mirror/issues/2328 🔗 这镜像不在白名单. this image is not in the allowlist.
Warning Failed 13s (x3 over 53s) kubelet Error: ErrImagePull
报错关键字：Failed to pull image 可以判断出是镜像拉取失败
3.找到pod对应yaml文件排查
未解决
8.存活探针失败
可以看到pod已经重启过一次
2.查看详细信息
kubectl describe pods liveness-probe-failure-pod
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
......
Warning Unhealthy 0s (x8 over 27s) kubelet Liveness probe failed: HTTP probe failed with statuscode: 404
.....
根据告警，可以得知是存活探针的问题

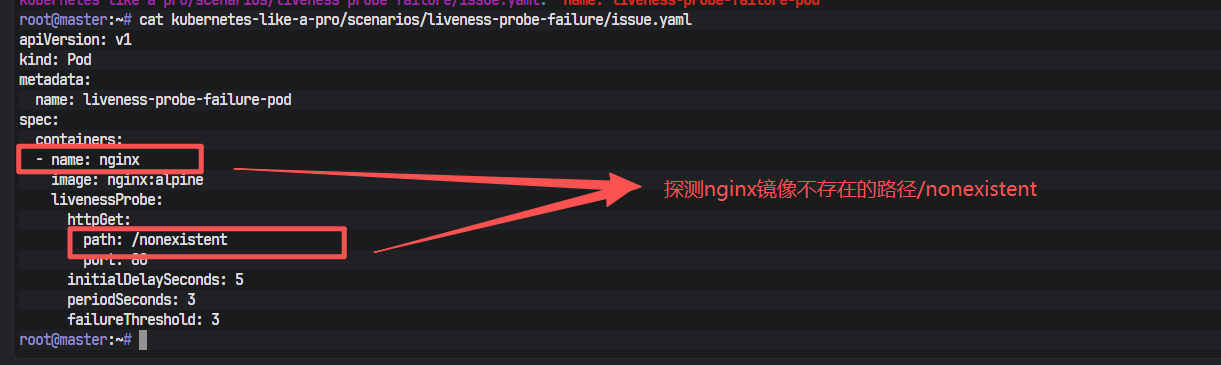

3.查看pod的yaml资源清单
所有pod会一直进行重启
4.修改对应pod的资源清单，改成有相应路径的yaml后，删除并重启pod，就无报错
9.持久卷声明问题
1.查看详细报错信息
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 61s default-scheduler 0/3 nodes are available: pod has unbound immediate PersistentVolumeClaims. preemption: 0/3 nodes are available: 3 Preemption is not helpful for scheduling.
警告 调度器尝试将pod放在3个节点上失败，pod未绑定pvc

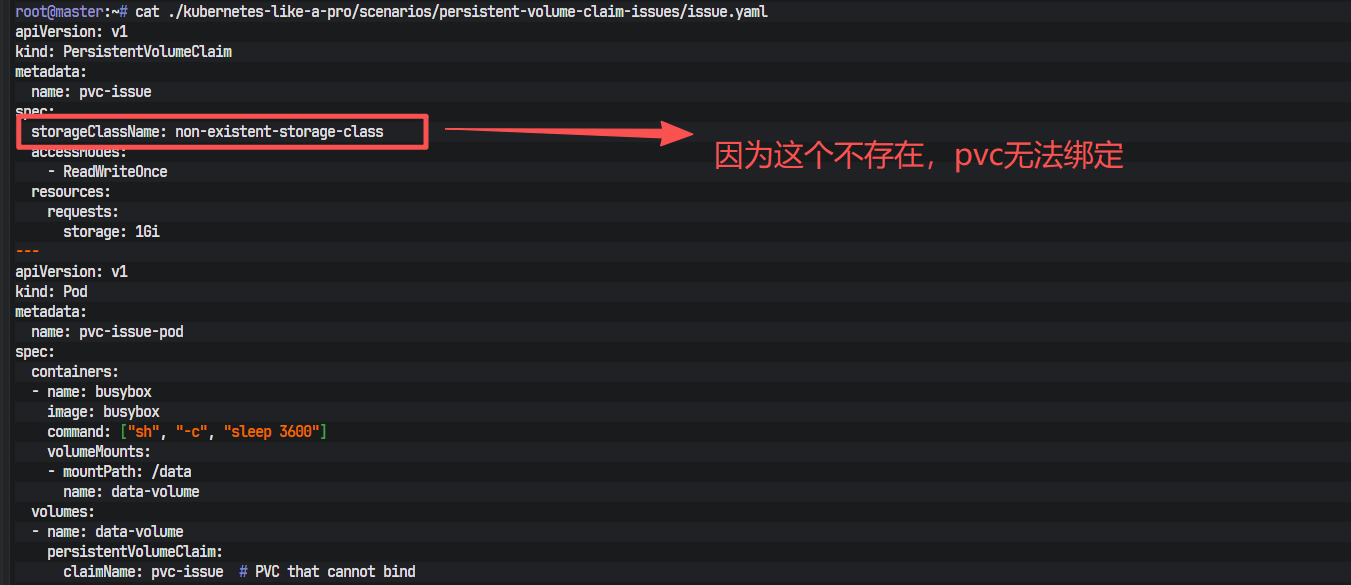

2.查看对应pod的yaml清单
root@master:~# grep -r "name: pvc-issue-pod" .
./kubernetes-like-a-pro/scenarios/persistent-volume-claim-issues/issue.yaml: name: pvc-issue-pod
10.SELinux/AppArmor 策略冲突
11.集群自动伸缩问题

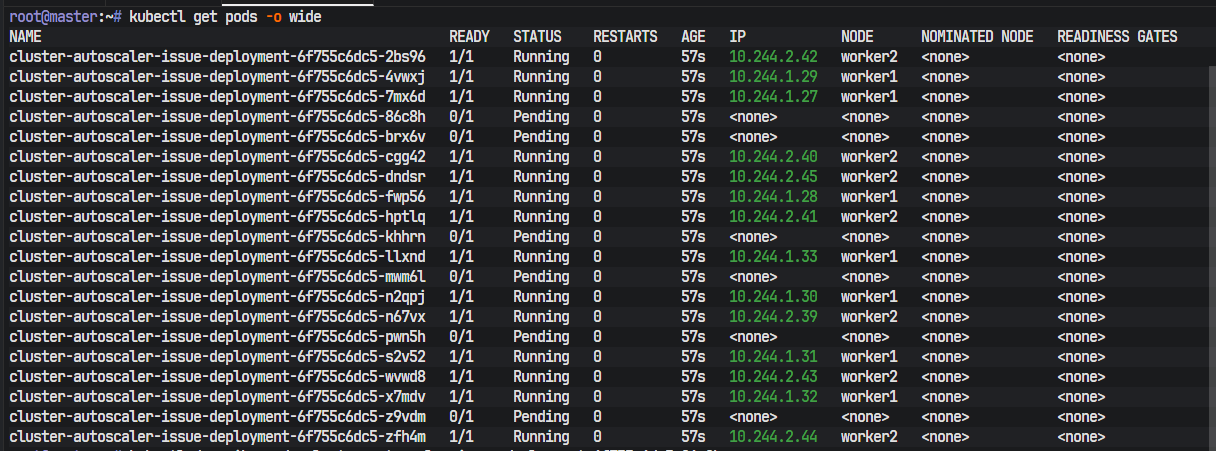

发现有多个pod状态处于pending状态
2.查看pod的详细信息
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 90s default-scheduler 0/3 nodes are available: 1 node(s) had untolerated taint {node-role.kubernetes.io/control-plane: }, 2 Insufficient cpu. preemption: 0/3 nodes are available: 1 Preemption is not helpful for scheduling, 2 No preemption victims found for incoming pod.
警告 调度失败 90s前 来自默认调度器 可用节点0/3: 1个节点存在不可容忍的污点：node-role.kubernetes.io/control-plane:
2个节点cpu不足，抢占评估结果：0/3节点可用，其中1个节点抢占无法解决调度问题，另外2个节点未找到可被抢占到pod

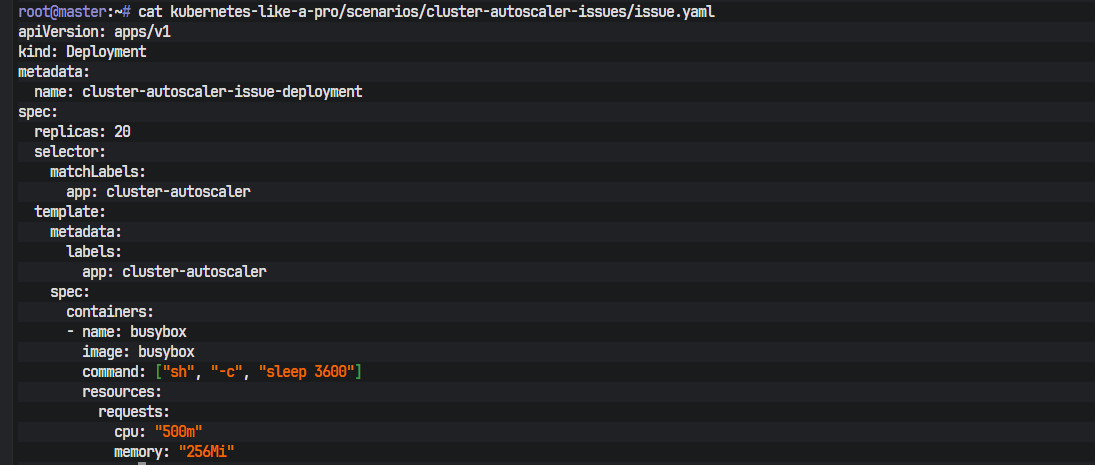

3.查看pod对应的资源清单
发现启动的pod配置信息为0.5核心256m的内存，启动20个pod
但是我1master2worker都是4h4g的内存，所以我的集群硬件条件无法满足启动20个pod，所以有的pod无法启动
解决办法：
1.要么修改对应的pod配置
2.要么减少启动的pod数量
12.挂载卷文件权限问题
1.查看pod状态为error状态

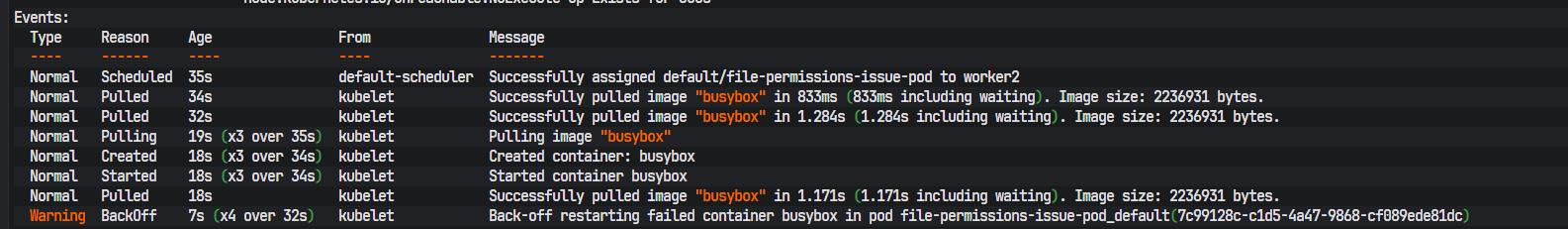

2.查看详细信息
警告 回退重启 7s前 来自 kubelet 正在退避重启pod file-permissions-issue-pod(位于名称空间 default，UID为 7c99128...)中失败的容器 busybox
3.查看pod日志
root@master:~# kubectl logs file-permissions-issue-pod
sh: line 0: can't create /tmp/test.txt: Read-only file system
无法创建/tmp/test.txt'

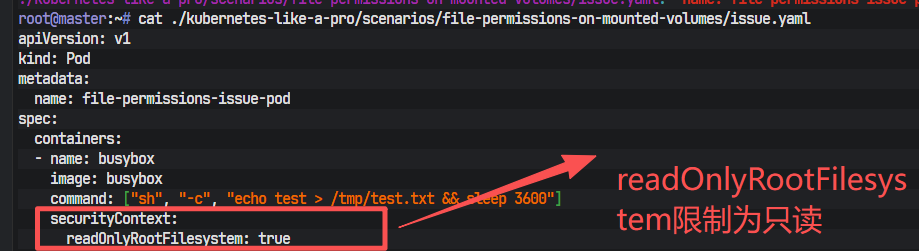

4.查看pod的yaml清单
发现是限制了只读，注解或者删除securityContext字段就可以了
13.存活/就绪探针失败
1.查看Pod状态
root@master:~# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
liveness-readiness-failure-pod 0/1 Running 1 (12s ago) 24s 10.244.1.36 worker1 <none> <none>
虽然状态为running状态，但是重启过一次
2.查看pod详细信息
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning Unhealthy 5s (x12 over 36s) kubelet Readiness probe failed: HTTP probe failed with statuscode: 404
Warning Unhealthy 5s (x9 over 35s) kubelet Liveness probe failed: HTTP probe failed with statuscode: 404
警告 不健康 5s（在36s内出现12次） kubelet 就绪探针失败：http探测失败，状态码为404
警告 不健康 5s（在35s内出现9次） kubelet 存活探针失败：http探测状态，状态码为404

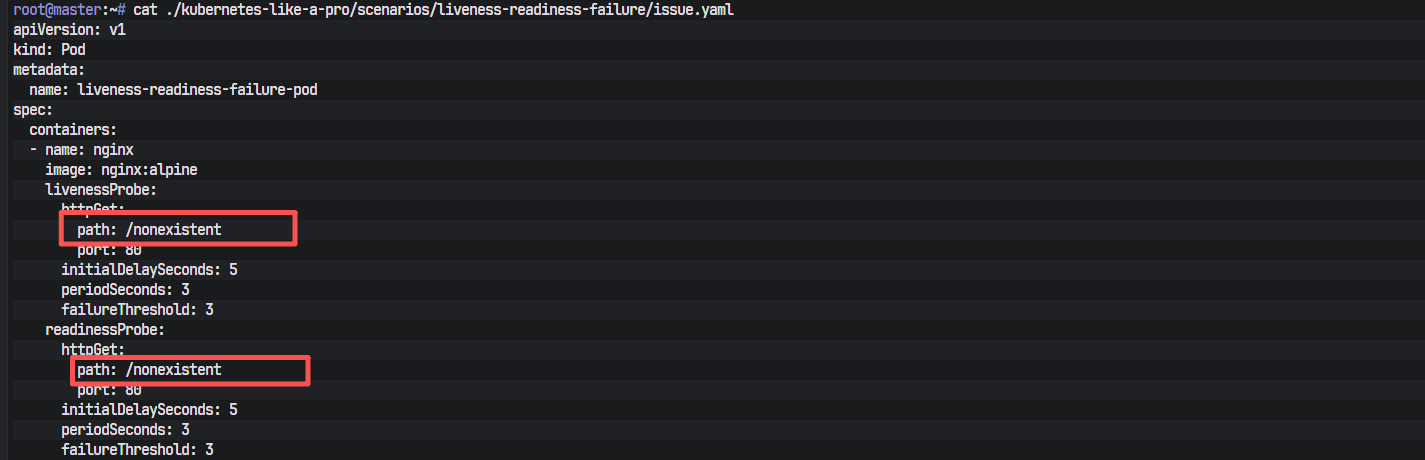

3.查看对应pod的yaml文件
可以看到yaml文件中的存活探针和就绪探针都需要存在/nonexistent文件夹才能通过探针，但是nginx默认没有这个文件，所以探针失败，将标红的这两个删除后，重启pod，现在正常
14.PID命明空间冲突
root@master:~# kubectl get pod pid-namespace-collision-pod -o yaml | grep -E "hostPID|shareProcessNamespace"
{"apiVersion":"v1","kind":"Pod","metadata":{"annotations":{},"name":"pid-namespace-collision-pod","namespace":"default"},"spec":{"containers":[{"command":["sh","-c","echo 'WARNING: Host PID namespace shared - security risk' \u0026\u0026 sleep 3600"],"image":"busybox","name":"busybox","securityContext":{"runAsUser":1000}}],"hostPID":true}}
hostPID: true
查看pod的yaml文件，该pod共享宿主机pid命名空间
后果:
1.进入pod内可以执行ps aux可以看到宿主机的全部进程
2.如果pod内的应用被攻破，可以使用kill -9 杀死宿主机上的进程
3.当pid资源全局耗尽后，节点上的所以pod都无法创建新进程
15.ServiceAccount权限问题
16.容器运行时（CRI）错误
1.查看pod状态
root@master:~# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
cri-error-pod 0/1 ContainerCreating 0 59s <none> worker2 <none> <none>
pod状态被卡到containerCreating 容器创建中
2.查看pod详细状态信息
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 104s default-scheduler Successfully assigned default/cri-error-pod to worker2
Warning FailedCreatePodSandBox 104s kubelet Failed to create pod sandbox: rpc error: code = Unknown desc = unable to get OCI runtime for sandbox "c1d55779fc3edbd434abb06b671c048441fc59230848f785b9615edf26e30a4c": no runtime for "non-existent-handler" is configured
警告 创建pod沙盒失败 104s前 来自kubelet 创建pod沙盒失败，错误码=Unknown，描述 = 无法为沙盒 c1.... 获取oci运行时：未配置名为non-existent-handler的运行时
3.查看对应pod的yaml文件
root@master:~# cat ./kubernetes-like-a-pro/scenarios/container-runtime-cri-errors/issue.yaml
apiVersion: node.k8s.io/v1
kind: RuntimeClass
metadata:
name: broken-runtime
handler: non-existent-handler
---
apiVersion: v1
kind: Pod
metadata:
name: cri-error-pod
spec:
runtimeClassName: broken-runtime
containers:
- name: busybox
image: busybox
command: ["sh", "-c", "sleep 3600"]
handler字段指定了容器运行时的处理名称，用于告知kubelet应用使用那个具体的OCI（Open Container lnitiative）运行时来运行该pod的容器
可以看到yaml文件中配置了non-existent-handler，所以和报错信息相对应，没有对应的non-existent-handler运行时，所以无法启动pod
4.确定从节点部署了哪些handler
cat /etc/containerd/config.toml | grep -A 10 "runtimes"
可能会看到类似下面的内容：
root@worker2:~# cat /etc/containerd/config.toml | grep -A 10 "runtimes"
[plugins.'io.containerd.cri.v1.runtime'.containerd.runtimes]
[plugins.'io.containerd.cri.v1.runtime'.containerd.runtimes.runc]
runtime_type = 'io.containerd.runc.v2'
runtime_path = ''
pod_annotations = []
container_annotations = []
privileged_without_host_devices = false
privileged_without_host_devices_all_devices_allowed = false
cgroup_writable = false
base_runtime_spec = ''
cni_conf_dir = ''
cni_max_conf_num = 0
--
[plugins.'io.containerd.cri.v1.runtime'.containerd.runtimes.runc.options]
BinaryName = ''
CriuImagePath = ''
CriuWorkPath = ''
IoGid = 0
IoUid = 0
NoNewKeyring = false
Root = ''
ShimCgroup = ''
SystemdCgroup = true
其中这两行是关键：
[plugins.'io.containerd.cri.v1.runtime'.containerd.runtimes.runc]
[plugins.'io.containerd.cri.v1.runtime'.containerd.runtimes.runc.options]
这两行配置位于containerd的配置文件（通常在/etc/containerd/config.toml）中，定义并配置runc这个运行时常量区（handler）的核心部分
17.防火墙限制
通过17个案例后，通用的三步走应该很熟练了：
kubectl get nodes -o wide
kubectl get pods -o wide
kubectl describe pods <pod-name>
kubectl logs <pod-name>
1.前面都没有问题，查看pod的log日志出现问题
root@master:~# kubectl logs firewall-restriction-pod
wget: download timed out
blocked
wget下载超时
2.进入pod检查dns解析
